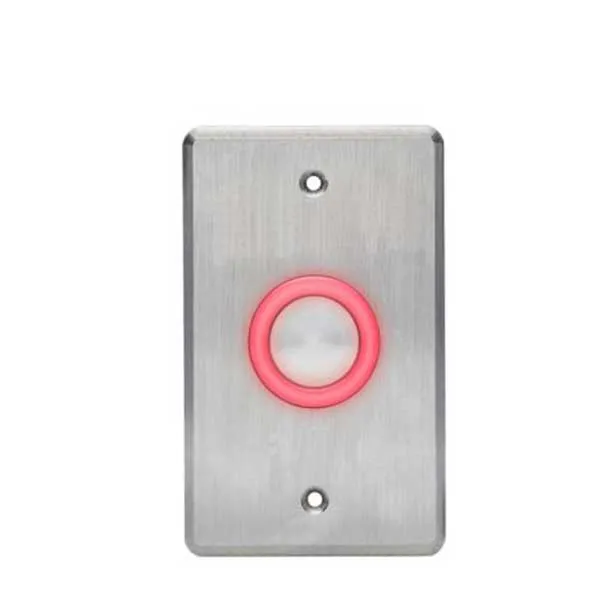

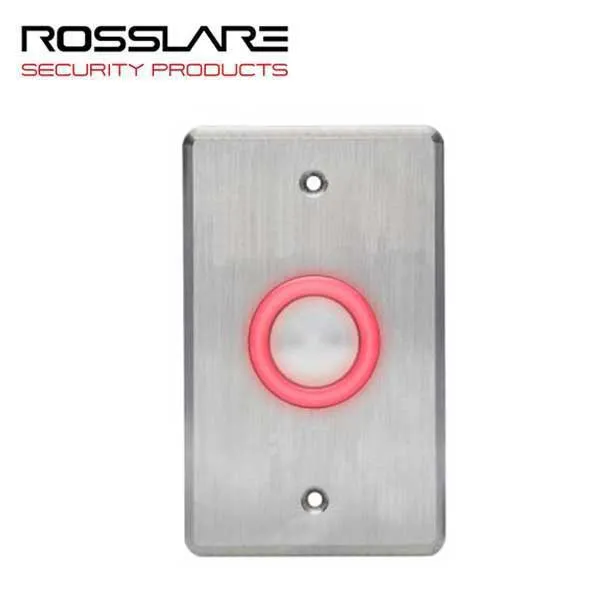

Rosslare's EX-06OO is a part of a powerful line of high quality piezoelectric
switches. Designed in mind of industrial and high-risk environmental
requirements, the EX-06OO will adapt well in mines, oil rigs & refineries, military
installations and more. The switch can be used in many hi-demanding
applications, from heavy machinery and mechanical operation panels, to access
control systems or direct door control.
The EX-06OO with no moving parts is extremely reliable, resilient and robust yet is
encased in an elegant design within a modern case suitable for use by
architects and designers.
Features:
- Solid state piezoelectric switch technology
- N.O. and N.C. relay pulse simply by the touch of a finger
- Output and Indication Toggle Option
- Adjustable Output and LED Indication Time of 1 to 60 Seconds
- Light Ring Status Indicator and Accidental Activation Hindrance
- Jumper Selectable Illumination Status Red Green, or No Illumination
Specifications:
| Type |
Piezo |
| Sensor / Switch Type |
Analog (Toggle) |
| Operating Voltage |
10-24 VDC |
| Led Type |
Ring |
| IP Rating | IP65 |
| Dimensions | 11.4 x 7 x 3.2 cm (4.5 x 2.75 x 1.25 in.) |
| Output Mode | Selectable Toggle or timed Pulse |
| Operating Temperature | -35˚C to 66˚C (-31˚F to 151˚F) |
| Relay Expectancy | 100,000 @ 2 A 30 VDC 500,000 @ 1 A 30 VDC |
| Manufacturer's Warranty: | Limited Product Warranty |
